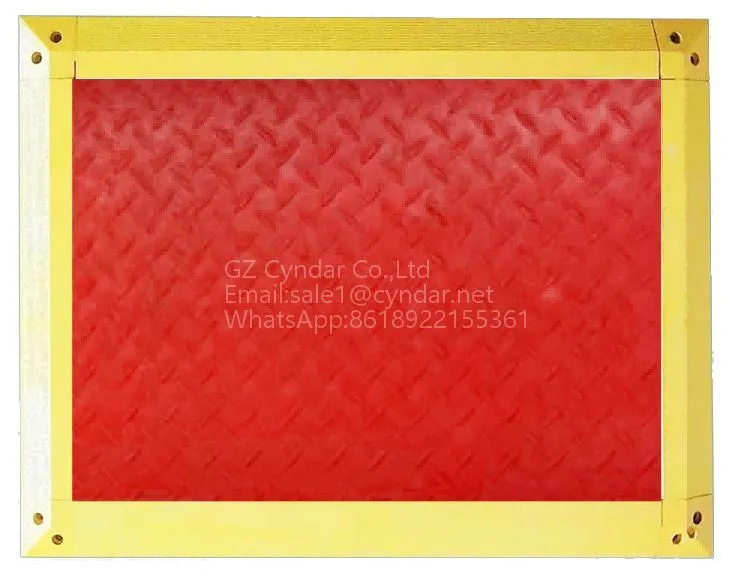

safety cushion mat is a protection device to protect people
Safety carpet is a pressure-sensitive safety protection device, also called safety carpet switch, industrial safety mat, etc.
Features: 1. Any rectangular size can be assembled
2. Have CE certification
3. Use in combination with safety mat controller
Model specification
PSM4-XXXYYY-Z
1.XXX: length dimension (unit: mm)
2.YYY: width dimension (unit: mm)
3.Z: color
B: black（Standard color）.R: Red. Y: Yellow.
Size description:
Size selection:
The following sizes are regular sizes, other sizes can be customized or spliced, please consult customer service for details
Product Size（mm） | type of output | Entry cable |
| 300300 | NO | 4-core wire |
| 400400 | NO | 4-core wire |
| 500250 | NO | 4-core wire |
| 600400 | NO | 4-core wire |
| 750250 | NO | 4-core wire |
| 750500 | NO | 4-core wire |
| 750750 | NO | 4-core wire |
| 1000500 | NO | 4-core wire |
| 1000750 | NO | 4-core wire |
| 10001000 | NO | 4-core wire |
| 1500500 | NO | 4-core wire |
| 1500750 | NO | 4-core wire |
| 15001000 | NO | 4-core wire |
Technical parameters of safety mats:
Tsize | It can be specially made according to requirements, with length of 200mm-1000mm and width of 200mm-3000mm |
Underpressure | Dynamic 500kg, solid 700kg |
Surface material | Rubber(red / yellow / Black optional) |
Control level | Shared with controller to reach level 3 |
Degreeof protection | IP65 |
Ambient temperature | -10 degree to 60 degree |
Thickness | 14mm |
Trigger force | Adult 30kg |
Cable length | 3Mand 5moptional |
Response time | Less than 30ms |
Weight | About30kg/ sq.m |
Chemical resistance | Generally |
Material ability | Generally |
Service life | A million times |
Waterproof | Generally |
Anti mineral acid | Generally |
Anti organic acid | Generally |
Anti alcohol | Generally |
Anti ethanol | Generally |
Corrosion protection | Generally |
Anti petroleumsolvent | Generally |
Anti bio oil solvent | Generally |
Type of output | No(normally open) |
Maximum voltage | DC24V |
Safety controller parameters:
| Model | Tner-A31 |
Power supply | DC24V |
Voltage tolerance | plus 10 percent /-20 percent |
Power waste | 2.9W |
Output | |
Relay safety output | 3N0 plus 1NC |
Transistor signal output | < 500ma=""> |
Relay contact capacity | |
AC-1 | 6A/250VAC/1500VA |
AC-15 | 4A/240VAC |
DC-1 | 6A/24VDC/150W |
DC-13 | 4A/24VDC |
Maximum switching capacity | 12A (distributed on all safety output contacts) |
Contact resistance | <> |
Minimum load | 10mA/5V |
Contact material | AgSn02 plus 0.2pmAu |
For more parameters, please download the safety control manual

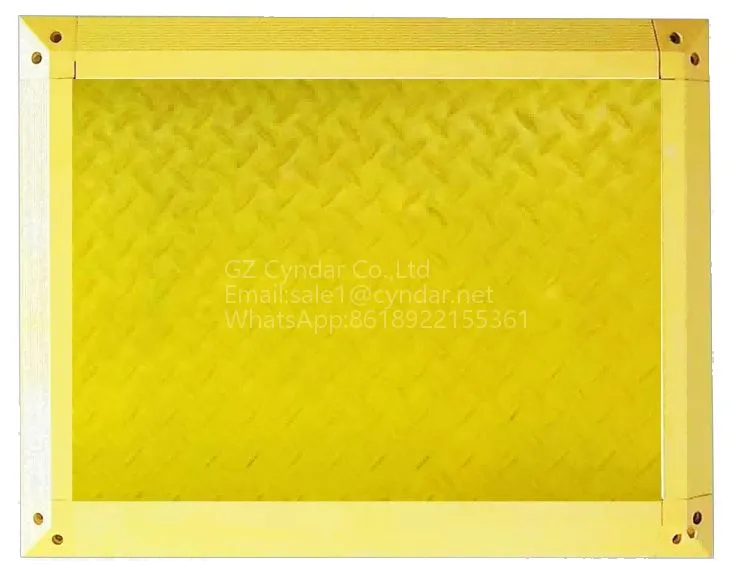

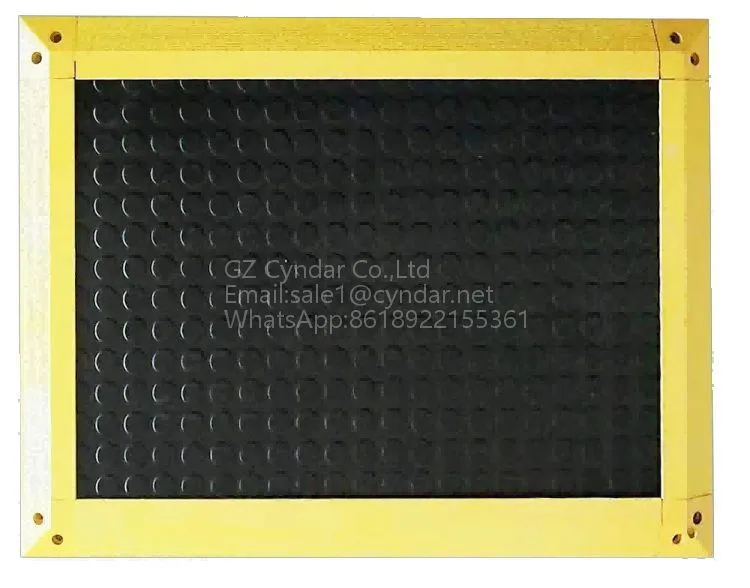

Product Image
 |  |  |
Precautions for the use of safety carpets:

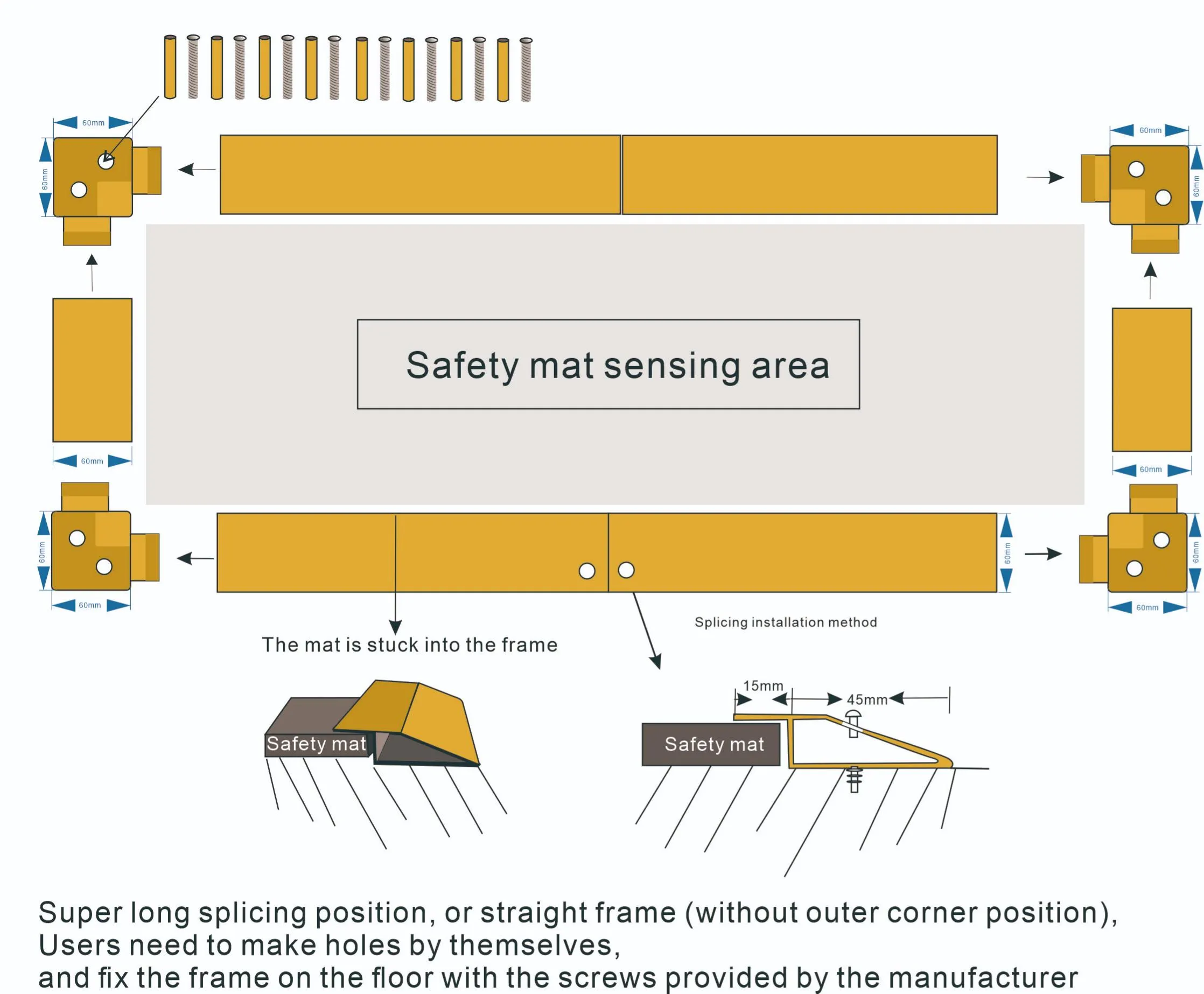

1. Purchase. When purchasing safe carpets, customers should measure the size of their desired location in advance, and place an order according to the changed size. CYNDAR safe carpets can be customized, and the size can be customized according to the specific needs of customers. Another point is: CYNDAR safety carpets can be spliced together. For supporting crimping, the crimping size is 60mm, and the overlapping part with the carpet is 15mm, so the crimping size is generally 90mm more in total on both sides.
2. Installation. If the installation is in a harsh environment and a place with a lot of oil pollution, pay attention to installing wood or plastic plates at the bottom of the safety carpet to play a role in oil separation! The safety carpet is generally made of natural rubber, but very few will use rubber scraps. Or PVC materials. If these materials are immersed in oil, they will bulge. An oil-repellent layer can be added to the surface of the carpet. When installing the safety carpet, pay attention to whether there are water, dust, acid and alkali substances. If you encounter this substance, you should try to avoid it. Semi-dry wipes can be used.
FAQ
1. Are regional agents allowed?
Yes, our global investment agent
2.do you have this radar certificate?
We have CE/RoHS/IP67 and other certificates.
3. Do you have a factory?
Yes, we are the manufacturer.
4. Can you provide samples before placing an order?
Yes, we can send you samples, but sample fees and freight will be charged.
5. Do you accept customized data cable?
Yes, we accept customized data cable, but it takes 10-20 days for delivery
The main production safety rubber series products include safety touch edges, safety edge protection, safety mats (safety carpets), and safety buffers. The company covers an area of more than 20 acres and is a medium-sized private enterprise integrating scientific research, development, production and sales.
